PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold

1
MOQ
USD
Preis
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold
Eigenschaften Galerie Produkt-Beschreibung Bewertungen & Rezensionen Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Extrudermodell: Einfach geschraubtes Extrudett
Größe des Profils: Max. 2140 mm
Einzelschraub -Extruder: SJ 120/35
Rohstoff: PP-Pellets
Cutter: SÄGE-SCHNEIDER
Stromspannung: 380V 50HZ 3-Phase (auf maßgeschneidert)
Wechselrichter: ABB
Anwendung: Konstruktion
Garantie: 12 Monate nach der Installation am lokalen Ort
Farbe: Abhängig von der Nachfrage
Verpackungsmethode: Film- oder Holzkisten
Hervorheben:

PVC profile extrusion machine with mold

,

L shape plastic extrusion production line

,

ABS PP PE profile making machine
Grundinformation
Herkunftsort: Jiangsu Zhangjiagen
Markenname: LB
Zertifizierung: CE,ISO
Modellnummer: LB-95/33
Zahlung und Versand AGB
Verpackung Informationen: Film- oder Holzkisten
Lieferzeit: 45 Tage
Versorgungsmaterial-Fähigkeit: 15 Sätze pro Monat
Produkt-Beschreibung
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

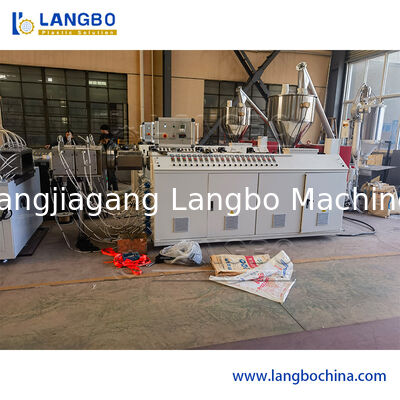

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 0
Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 1
Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 2
Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 3
Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 4 PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 5
