WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

1 Satz
MOQ
Negotiable（USD,EUR）
Preis
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Eigenschaften Galerie Produkt-Beschreibung Bewertungen & Rezensionen Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Garantie: 1 Jahr
Ausgabekapazität: 400kg/h
Rohstoffverträglichkeit: Holzfasern, Kunststoffpulver, Zusatzstoffe
screwDiameter: 65 mm
Kontrollsystem: SPS-Steuerung mit Touchscreen
Maschinengewicht: 3500 kg
Cutter: Sägeschneider
Schraubendesign: Doppelschraube
Rohstoff: WPC U. ZUSÄTZE
Verarbeitungsmethode: Prägung
Profilgröße: Laut der Zeichnung der Kunden
Breite: 200.240.300.400 mm
Grundinformation
Herkunftsort: Zhangjiagen
Markenname: LB
Zertifizierung: CE,ISO
Modellnummer: LB-300
Zahlung und Versand AGB
Verpackung Informationen: STANDARDPAKET
Lieferzeit: 45 WERKTAGE
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 15 Sätze pro Monat
Produkt-Beschreibung
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter
Complete Extrusion Line Components
Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.

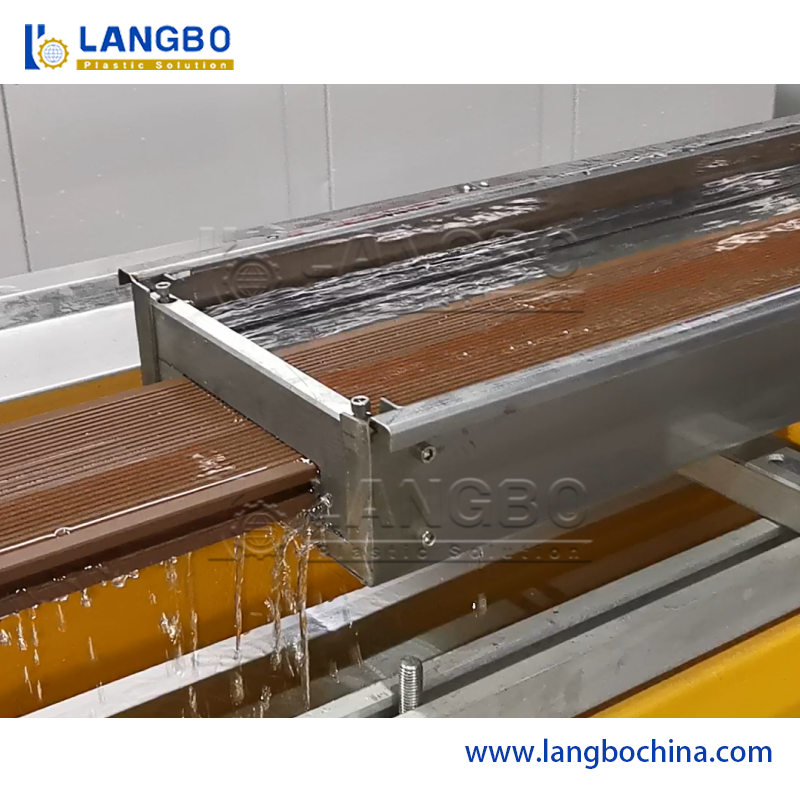

Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.

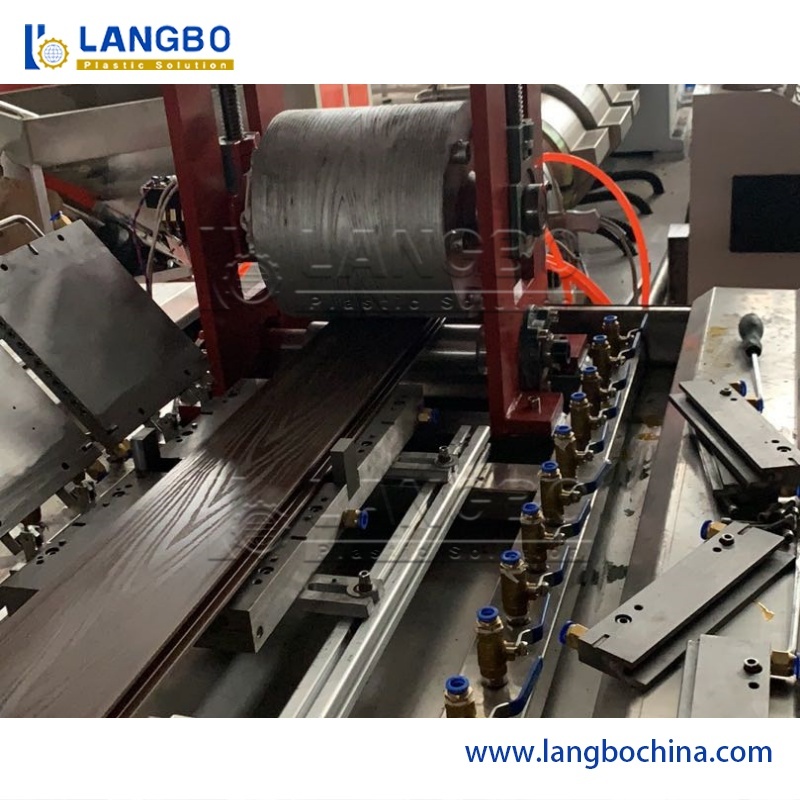

Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 0

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 1

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 2

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 3
